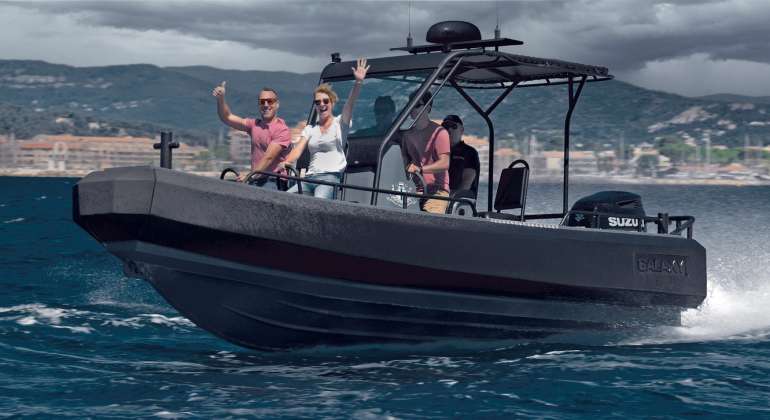

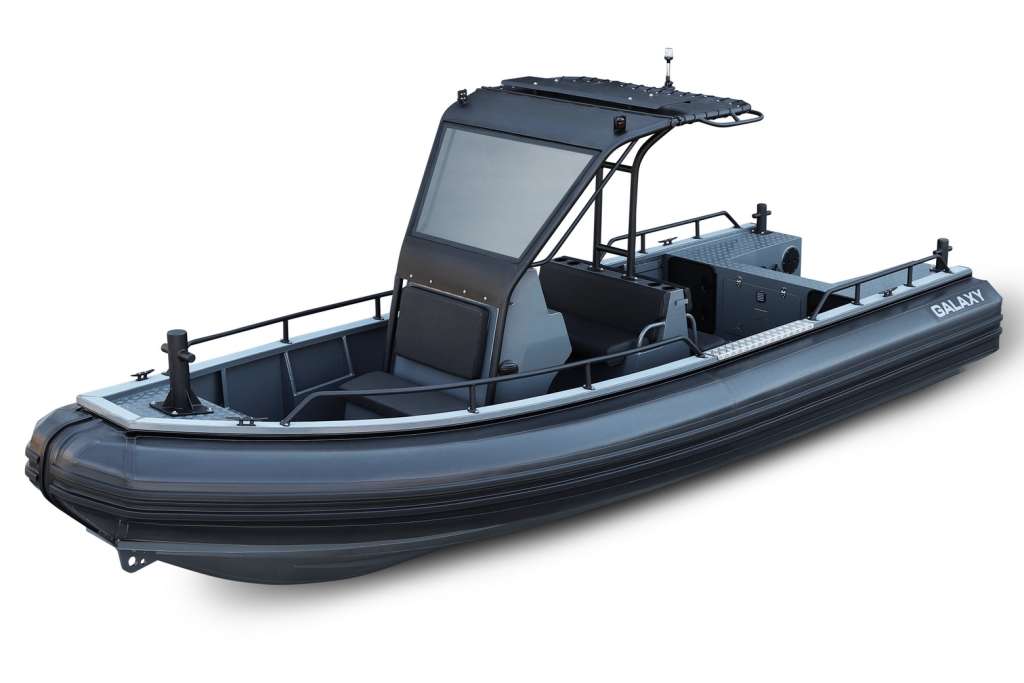

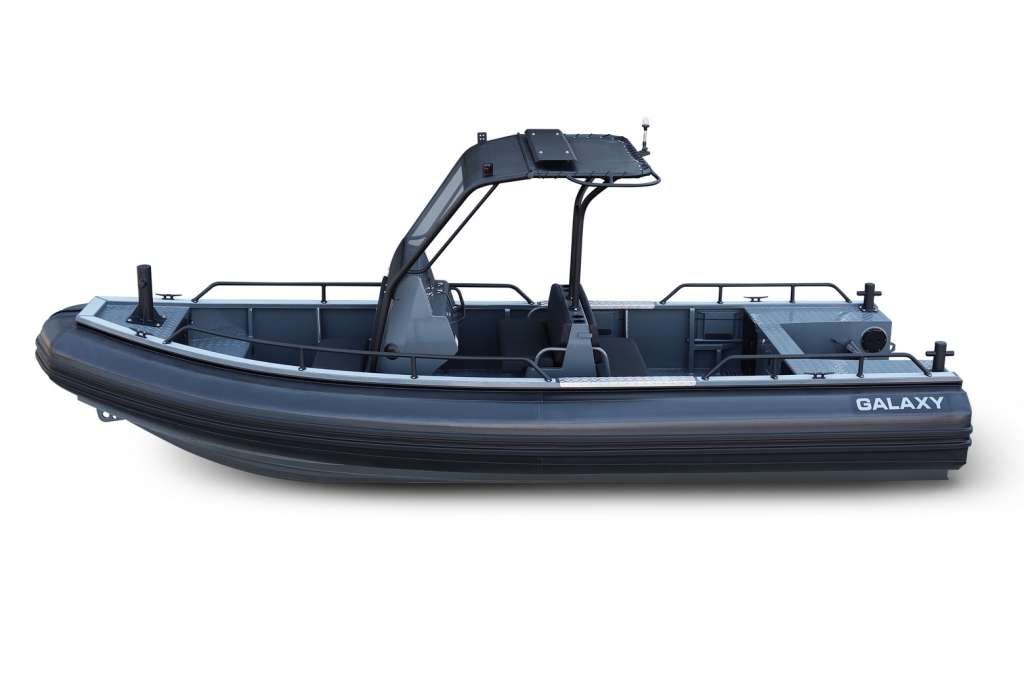

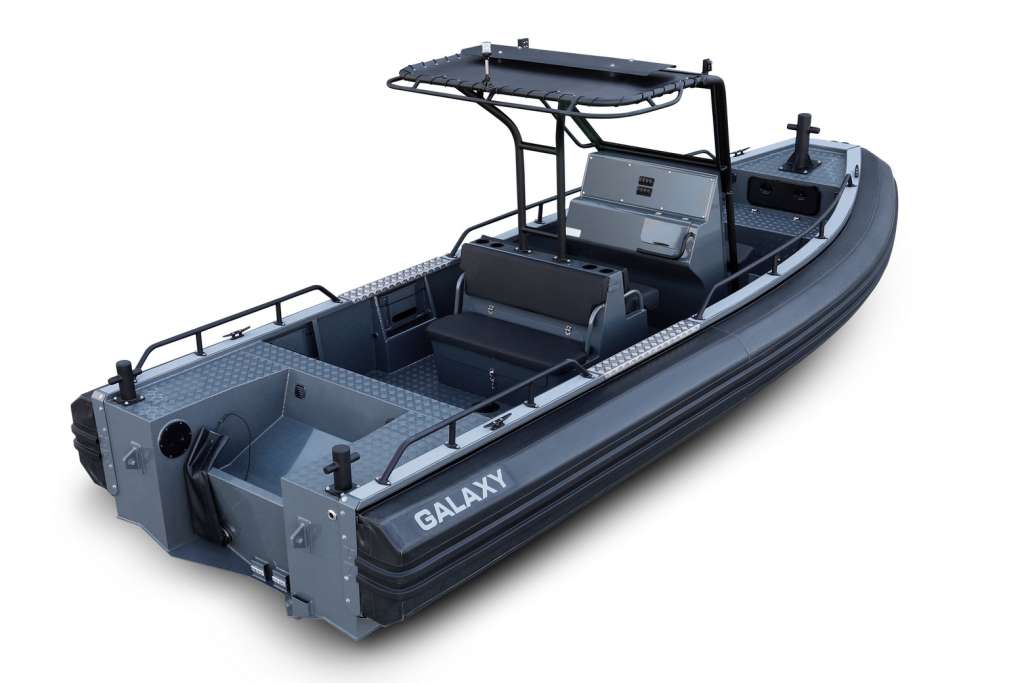

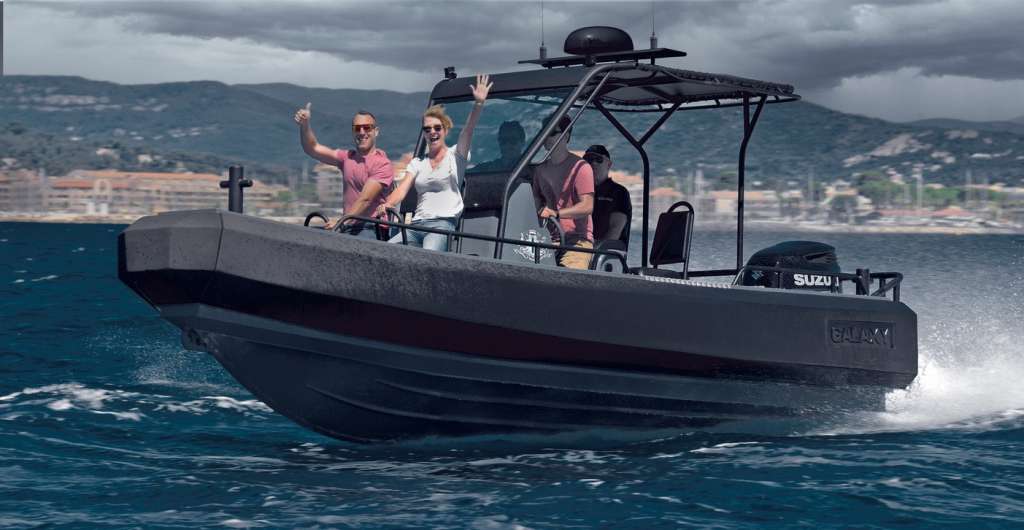

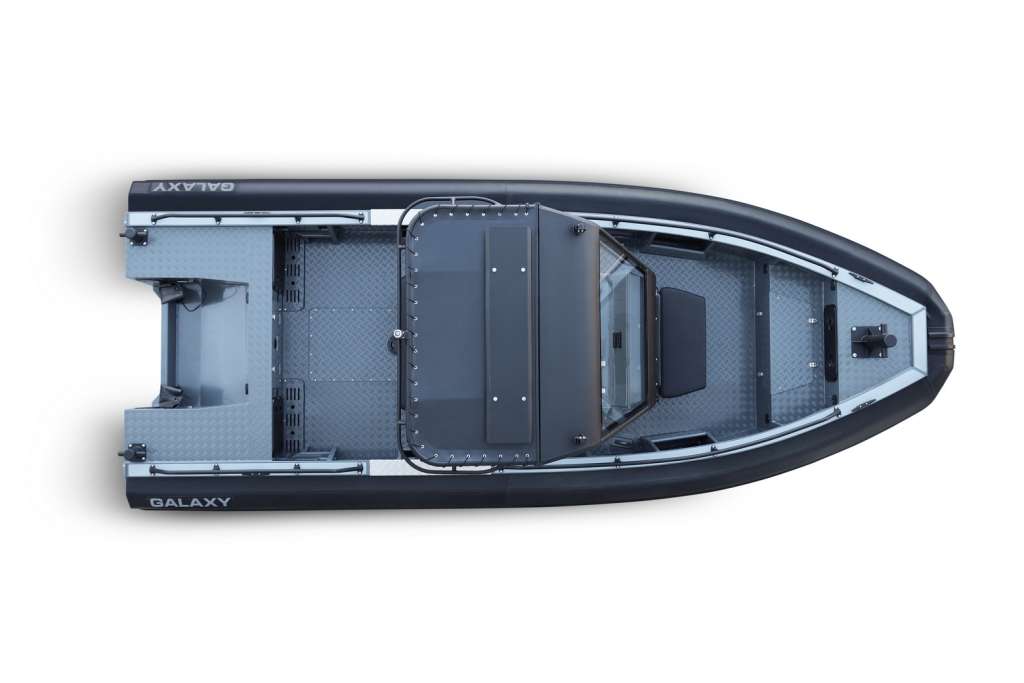

Trident T6.5
TRIDENT T7 is one of the most advanced boats in the GALAXY line, known for its innovation and compliance with the highest standards for commercial missions, patrol, law enforcement, heavy special and commercial missions. Its heavy-duty welded aluminum hull construction combined with D-shaped tubes, ensures not only high strength, but also optimal safety and durability. The D-TUBE concept used in this boat is completely unique, providing significantly more cockpit space. This makes TRIDENT T7 an excellent choice for professional and commercial applications as it offers a larger hull capacity compared to traditional O-shaped tubes designs. This approach contributes to increasing functionality and comfort, satisfying the needs of the most demanding users in various fields of activity.
AVAILABLE OPTIONS

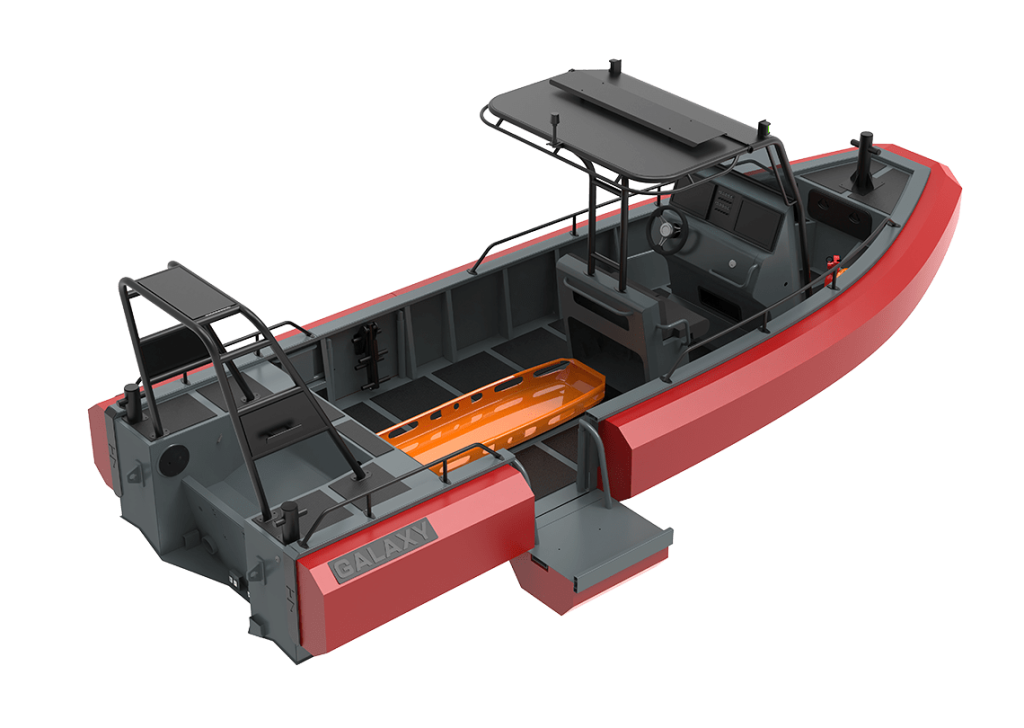

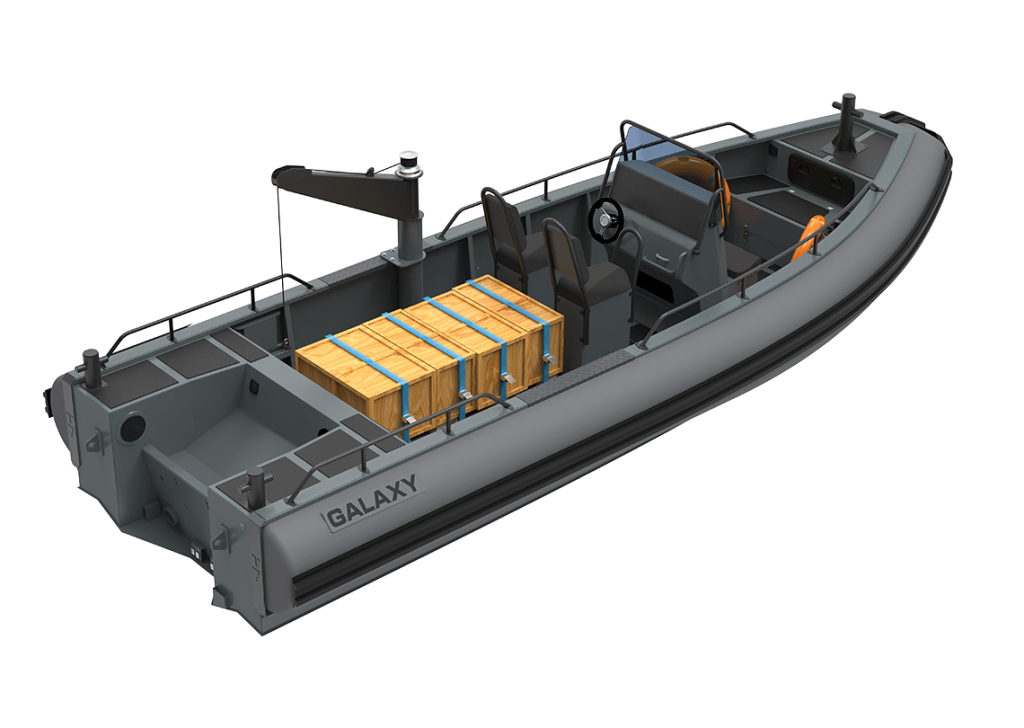

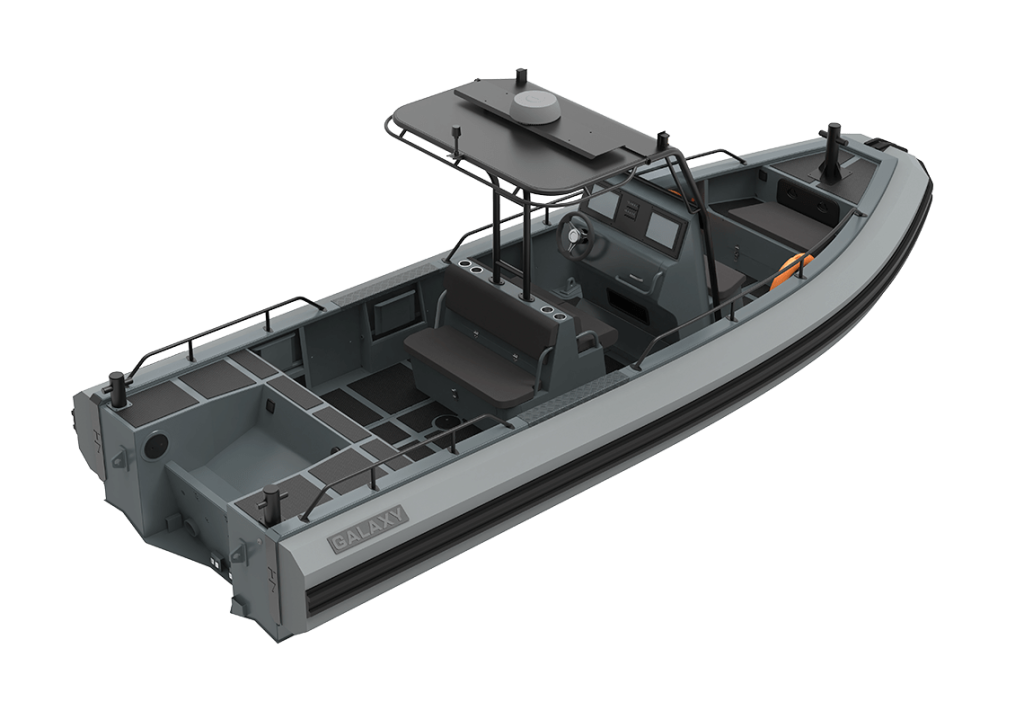

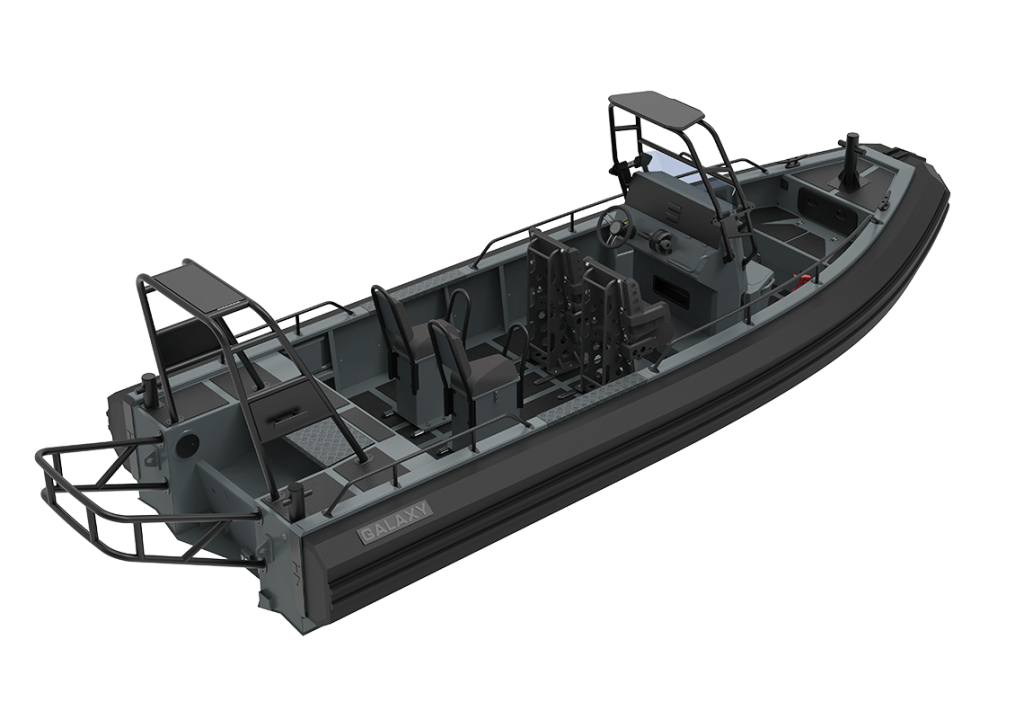

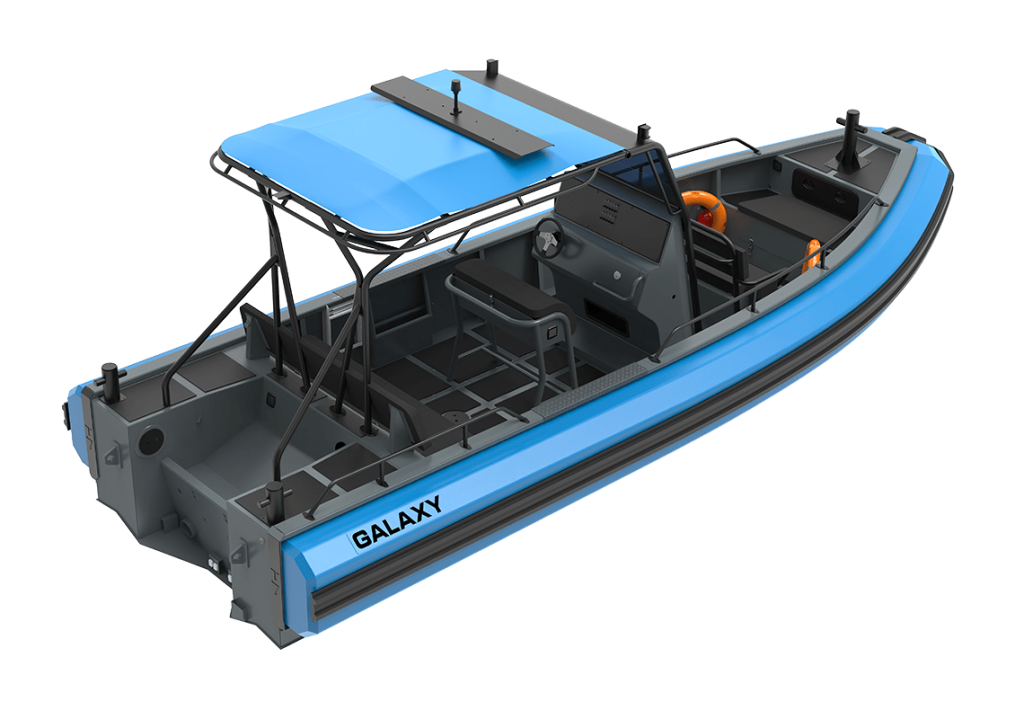

The GALAXY concept allows you to customize each boat to meet your specific requirements and tasks. This personalized approach ensures that every client receives a boat perfectly suited to their needs. A wide range of equipment is available for your requirements, along with custom engineering solutions tailored to your needs.
SPECIFICATION
Detailed information on the key specifications and capabilities of this boat. Review the technical characteristics to understand the tasks and conditions for which this boat is suitable. These specifications define the boat’s performance and reliability.
| TECHNICAL DATA | TRIDENT T6.5 |
| Total length | 650 cm / 21′ 4” |
| Cockpit length | 585 cm / 19′ 2” |
| Overall width | 250 cm / 8′ 2” |
| Cockpit width | 180 cm / 5′ 11” |
| Tube diameter max | 60 cm / 23,6” |
| Weight of the vessel | 1200 kg / 2640 lbs |
| Cargo carrying capacity | 1200 kg / 2640 lbs |
| Passenger capacity | 10 |
| Number of compartments in tubes | 5 / – |
| Recommended engine power | 250 HP / 183,9 kW |
| Maximum engine power | 300 HP / 220,6 kW |
| Maximum motor weight | 400 kg / 880 lbs |
| Motor leg length | 25″ / 2×20″ |
| Fuel tank capacity | 202 L |
| Roughness on the trine / middle | 23° / 30° |
| Material of tubes | TPU Polyurethane coated foam |
| Hull material | Aluminum hull RIB |
| Aluminum sheet thickness (side / bottom) | 5 mm |
| Boat design category | C |
Type of tubes
Tube 1
Inflatable O-shaped tubes are ideal for rescue equipment and boats due to their lightness and compactness. O-shaped tubes have a round profile for even pressure distribution. They provide high buoyancy and improved stability on the water. Inflatable tubes are made from durable materials such as PVC or Hypalon.
Tube 2
D-shaped foam tubes offer additional strength and durability due to their resistance to mechanical damage. D-shaped tubes have a flat inner side and a rounded outer side. This shape allows for more efficient use of space and provides greater stability. The protective coating prevents exposure to UV rays and chemicals, making these tubes ideal for use in extreme conditions.
