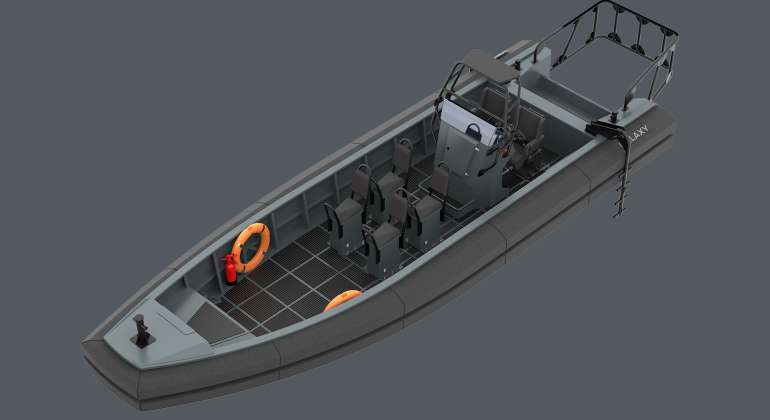

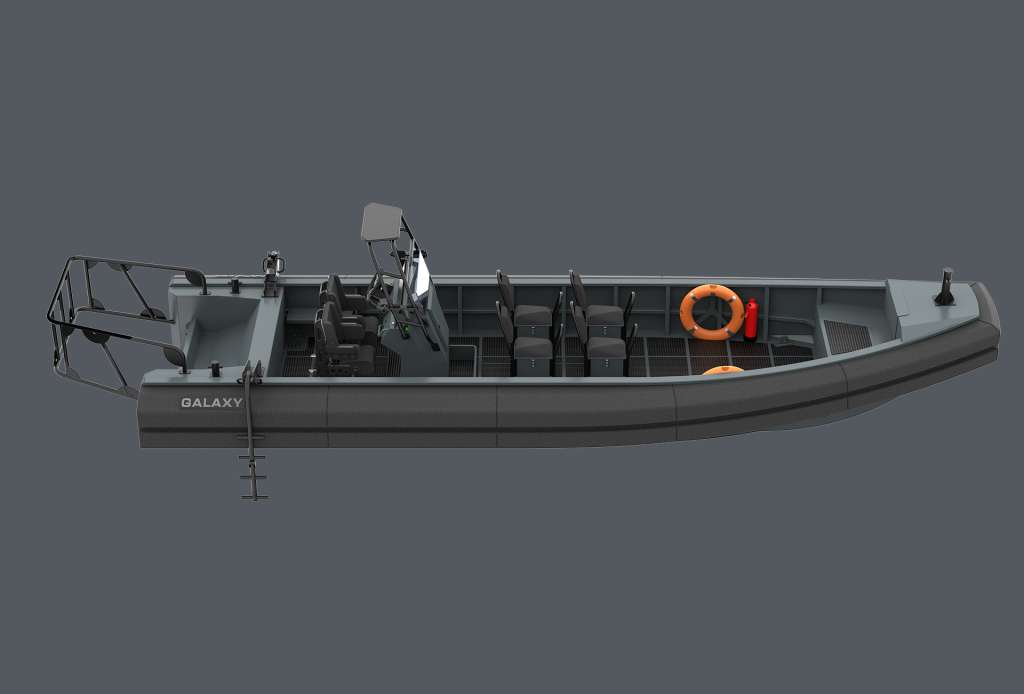

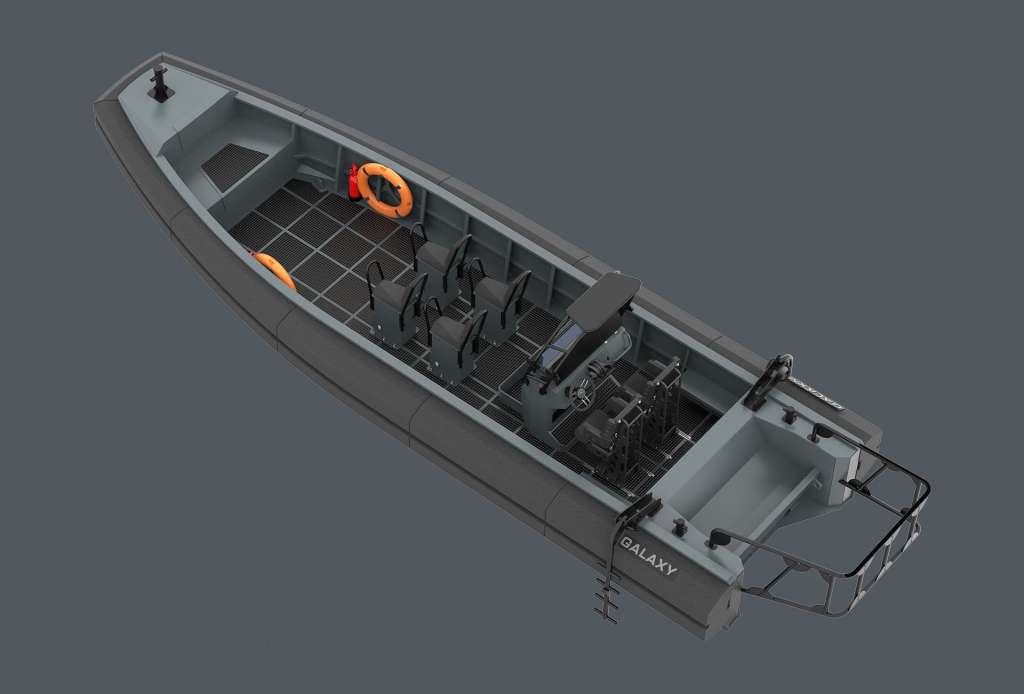

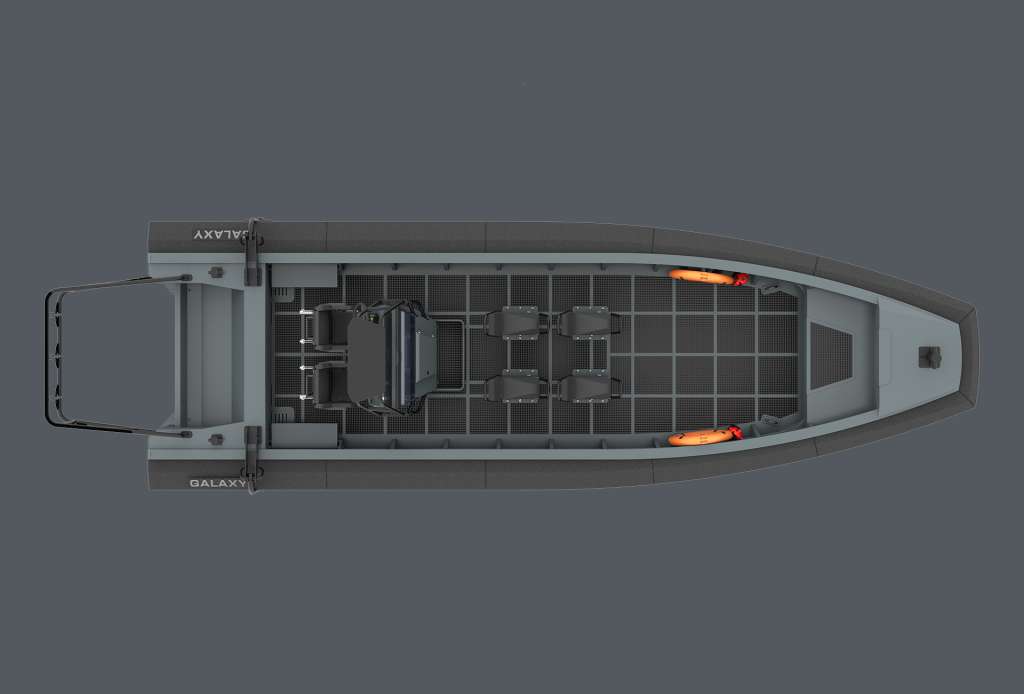

TRIDENT T10

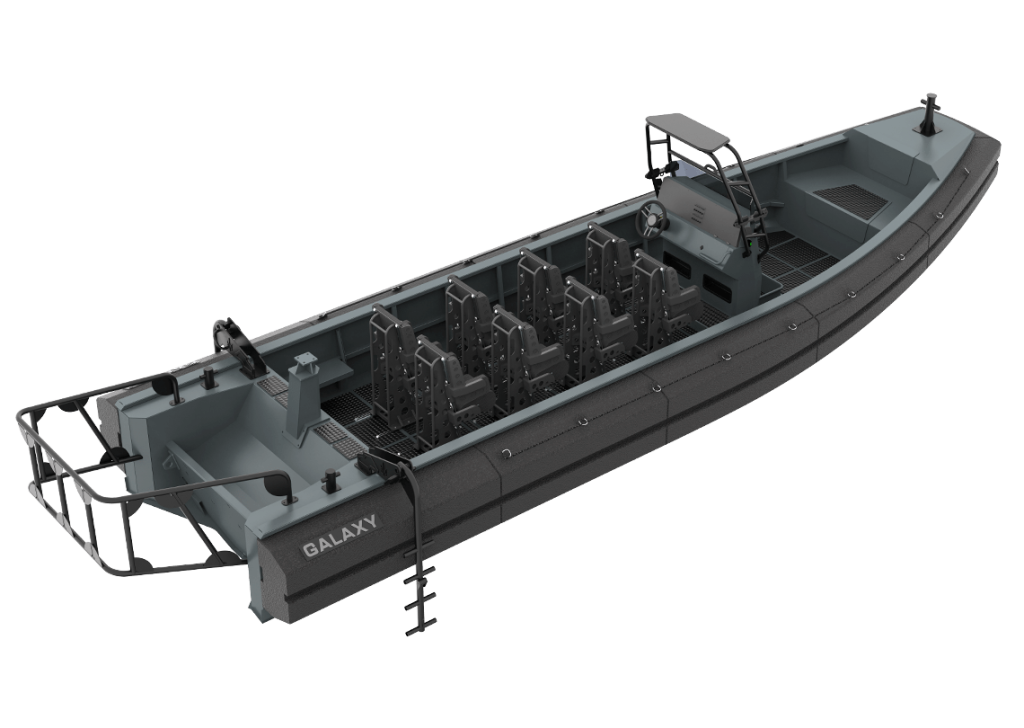

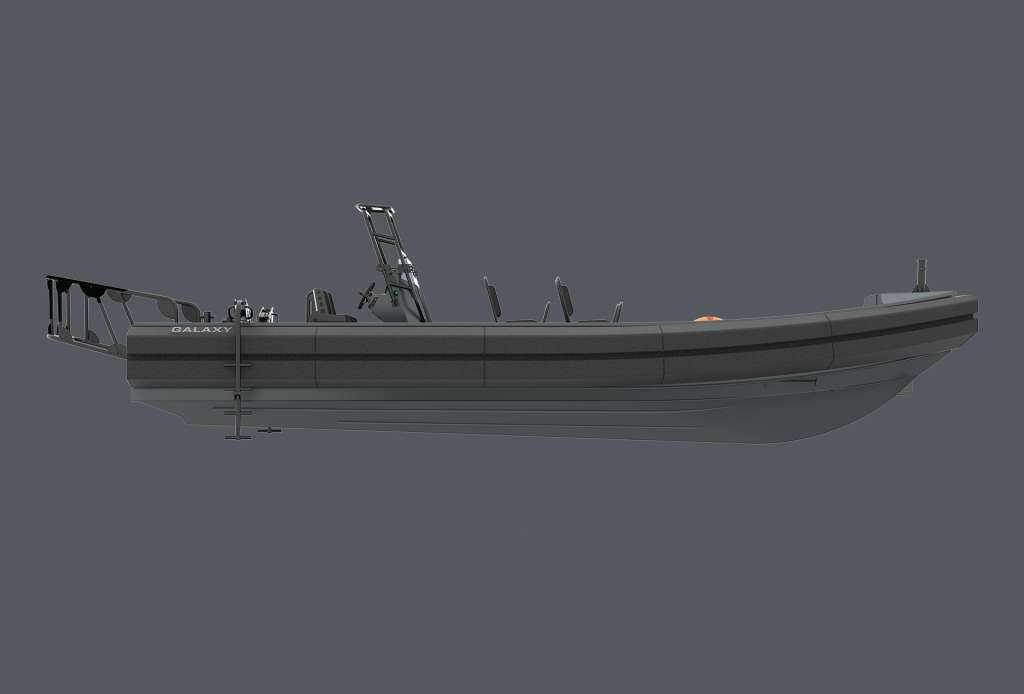

TRIDENT T10 is an advanced boat in the GALAXY line of professional equipment, designed for the most demanding tasks in the areas of patrol, law enforcement, special and commercial operations. With its ultra-strong welded aluminum hull construction and innovative D-TUBE technology with D-shaped tubes, TRIDENT T10 provides exceptional strength, durability and space efficiency. This boat is ideal for complex tasks in the harshest conditions, guaranteeing reliability and comfort during operation. Thanks to the increased space in the cockpit, TRIDENT T10 allows for convenient placement of equipment and personnel, making it the optimal choice for professional use.
AVAILABLE OPTIONS

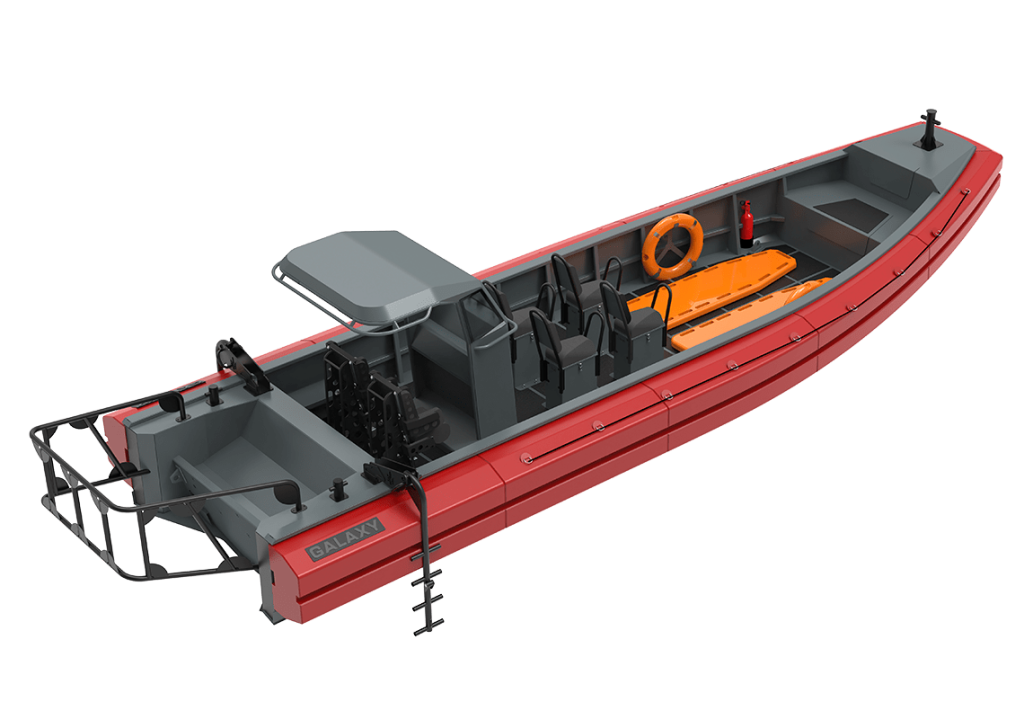

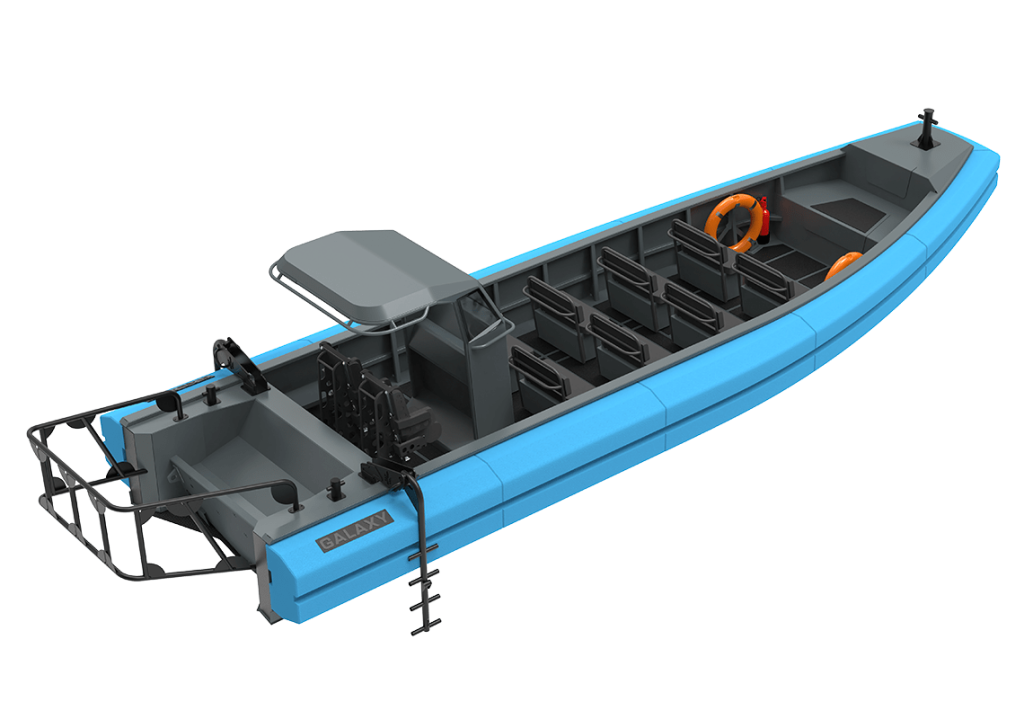

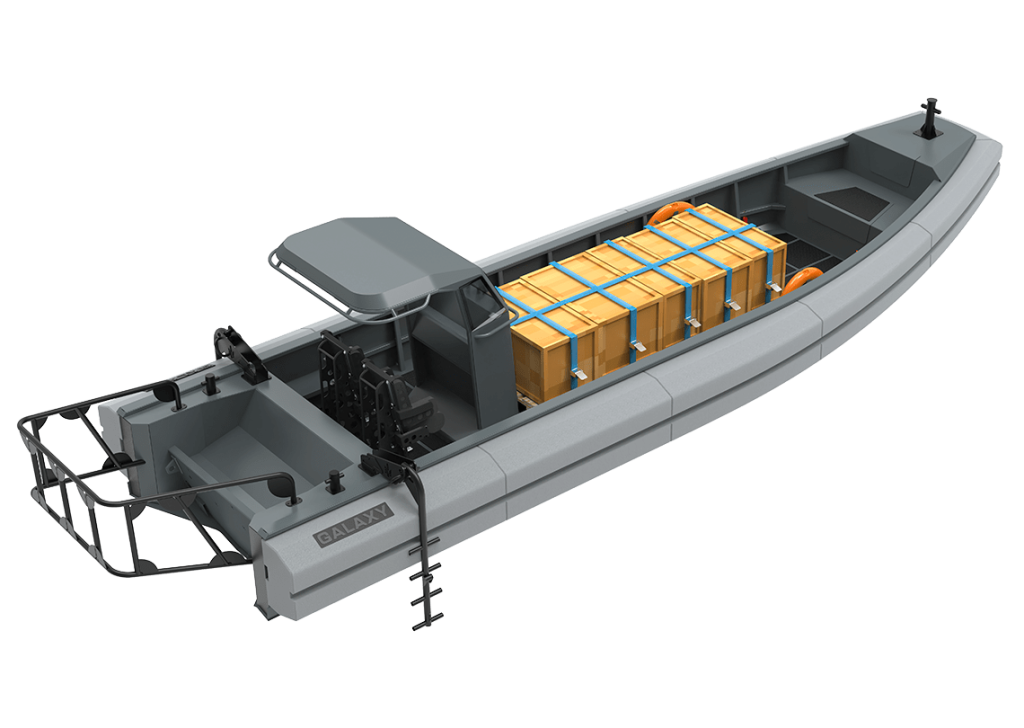

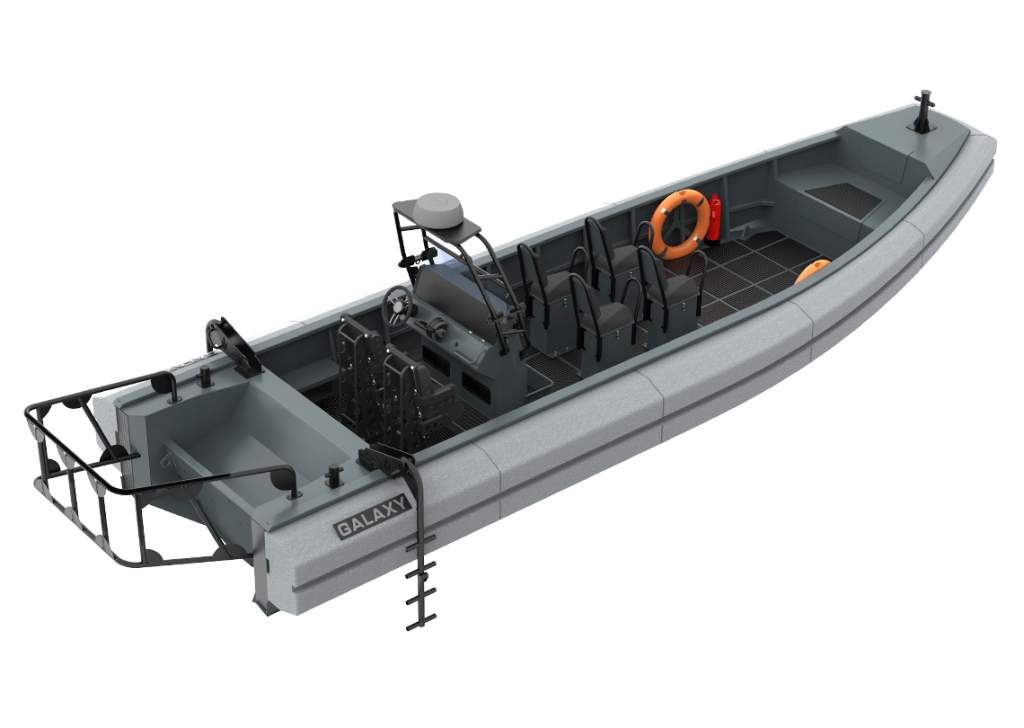

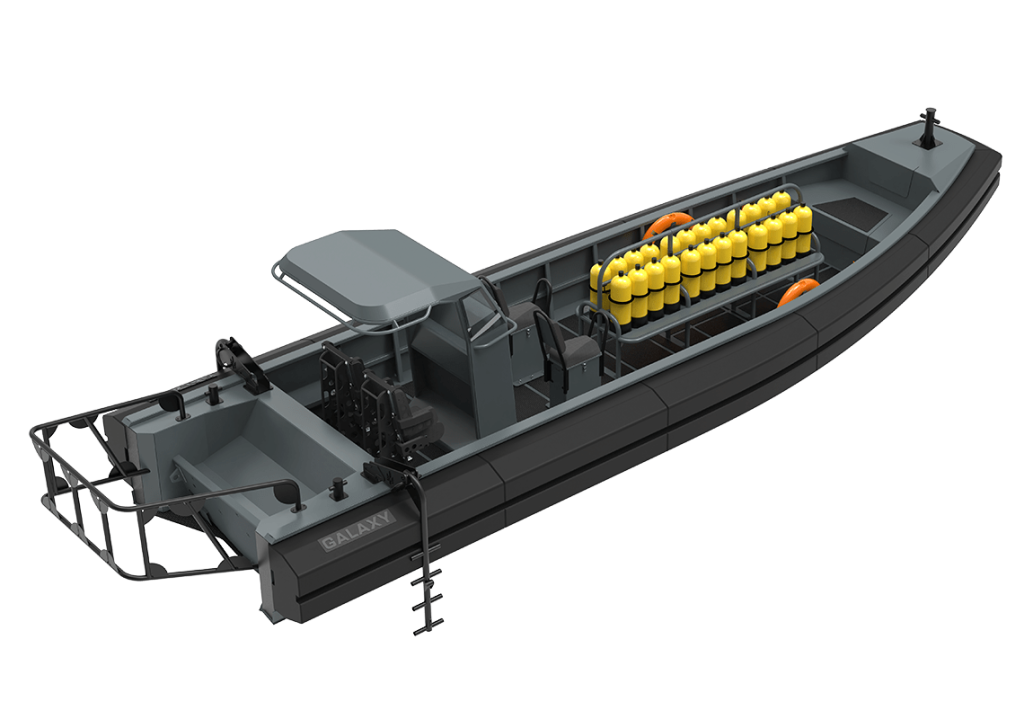

The GALAXY concept allows you to customize each boat to meet your specific requirements and tasks. This personalized approach ensures that every client receives a boat perfectly suited to their needs. A wide range of equipment is available for your requirements, along with custom engineering solutions tailored to your needs.
SPECIFICATION
Detailed information on the key specifications and capabilities of this boat. Review the technical characteristics to understand the tasks and conditions for which this boat is suitable. These specifications define the boat’s performance and reliability.
| TECHNICAL DATA | TRIDENT T10 |
| Total length | 960 cm / 31′ 6” |
| Cockpit length | 650 cm / 21′ 4” |
| Overall width | 320 cm / 10′ 6” |
| Cockpit width | 220 cm / 7′ 3” |
| Tube diameter max | 62 cm / 24,4” |
| Weight of the vessel | 2000 kg / 4400 lbs |
| Cargo carrying capacity | 2200 kg / 4840 lbs |
| Passenger capacity | 16 |
| Number of compartments in tubes | 7 / – |
| Recommended engine power | 600 HP / 441,3 kW |
| Maximum engine power | 700 HP / 514,8 kW |
| Maximum motor weight | 800 kg / 1760 lbs |
| Motor leg length | 2×30″ |
| Fuel tank capacity | 1000 L |
| Roughness on the trine / middle | 21° / 28° |
| Material of tubes | TPU Polyurethane coated foam |
| Hull material | Aluminum hull RIB |
| Aluminum sheet thickness (side / bottom) | 6 mm |
| Boat design category | C / B |
Type of tubes
Inflatable O-shaped tubes are ideal for rescue equipment and boats due to their lightness and compactness. O-shaped tubes have a round profile for even pressure distribution. They provide high buoyancy and improved stability on the water. Inflatable tubes are made from durable materials such as PVC or Hypalon.
D-shaped foam tubes offer additional strength and durability due to their resistance to mechanical damage. D-shaped tubes have a flat inner side and a rounded outer side. This shape allows for more efficient use of space and provides greater stability. The protective coating prevents exposure to UV rays and chemicals, making these tubes ideal for use in extreme conditions.
